PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks

China PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks supplier
PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks supplier PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks supplier

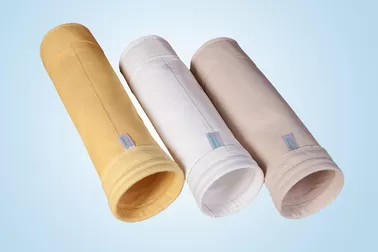

Large Image :  PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS ISO 9001
Model Number: PPS500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Paper cartons
Delivery Time: 2 weeks
Payment Terms: TT LC
Supply Ability: 20000PCS PER MONTH
Contact Now
Detailed Product Description
Weight: 500gsm Thickness: 1.9mm
Diameter: 120-180mm Length: 2000-8000mm
Constant Working Temperature: 160degree Warranty: 12 Months

PPS Ryton Needle Felt Filter Bag Media With High Temperature Resistant





Coal-fired power stations generate a significant amount of fly ash, which must be safely removed from the flue

gas by dust collectors. Therefore,  the central task of filter media in coal-fired power stations is an efficient dust removal and the neutralisation of harmful gases. Grace Envirotech offers you filter media solutions which are

designed for these tasks and matched to the individual applications.



PPS (Ryton) Filter medias(Polyphenylene Sulfide)

Application:



PPS (Ryton) Filter medias are widely used in coal-fired boilers, waste incinerators, coking furnaces, kiln furnaces, chemical dry process of flue gas cleaning processes, also using, carbon black, powder collection, pneumatic conveying, cement industry, and more. When due to chemical attack and hydrolysis causes, Aramid cannot be

used, PPS (Ryton) Filter media can be substituted.





Performance:



Continuous gas continuous temperature is up to 160°C, instant heat resistant up to 200°C

Chemical structure is simple, strong and stable

Excellent performance of acid and alkali resistance!

 Excellent hydrolysis resistance capability, and strong chemical stability

 Good flame retardant and excellent heat resistance function

 Disadvantage is that antioxidant performance of PPS (Ryton) Filter media is poor, it reacts to oxidation-corrosion.

It is suitable for gas with O2 composition < 10%



TYPICAL OPERATING CONDITIONS:

Cont. Temperature (°C):

70-220°C

Peak Temperature  (°C):

Orientation to the maximum peak temperature of the fibre polymers used

Dust:

Fly ash, sorption products

Dust Properties:

Fine, powdery, sometimes abrasive

Dust Source:

Dry sorption, fluidised bed firing, pulverised coal firing,  scrubber, spray reactor

Harmful Gases:

H2O, NOx, SOx

Cleaning Process:

Pulse jet

Fuels:

Lignite, coal



 SCRIM AND FIBRE TYPES FOR FILTER MEDIA IN COAL-FIRED POWER STATIONS:

Tailor-made dust filter media made of PPS ,Ryton,Polyimide (PI)- and Polytetrafluoroethylene (PTFE)-fibres meet the challenges in coal-fired power stations to the highest degree. For filtration of the various fly ashes all types are also available . The much larger filter area of the our dust filter ensures that the dust is separated in a highly effective manner. Thus, under optimal operational conditions, the dust collector achieves emissions which are often far below the legally permissible limits.





Applications:

In  thermal power plant coal boiler, waste  incinerator, thermal  power plant of fly ash filtration of pulse clear dust collector , PPS filter bag ,Rtyon filter bag  are an ideal filtration material.



Specifications:



Series:

PPS550gsm

Material:

PPS (RYTON) 450 - 650g/sq.m needle felt

Fibre:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Scrim:

100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)

Weight:

400 - 650g/m2 (customized)

Finishing:

Heat setting, single side singeing, calendering (double sides finishing would be available upon request)

Specifications:

Customized according to drawing / sample

Packaging:

Polybag in cartons

Applications:

Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.

Delivery Time:

7-45 days

Payment Terms:





Below fiber performance index for your reference.





 Operating Temperature (°C, dry)

 Abrasion Resistance

Hydrolysis Resistance

 Alkali Resistance

Organic Acid Resistance

Mineral Acid Resistance

Oxidation Resistance (15%)

PPS

190/ (200)

 Good

 Excellent

 Excellent

 Excellent

Excellent

Poor





Competitive Advantage:



Quality  PPS  Ryton Filter Bag

High temperature resistant
High-end production facilities
Good sewing job
PPS Ryton Filter Bag

Anti chemical function well .
Experienced technical & production

1 - Good quality Air filter material made with advanced machinery

2 - Accordingly adjusted technical process

3 - Strict raw material control and products quality control

4. Heat resistance
5. Good acid and alkali resistance
6. Good hydrolysis stability
7. Easy to dedust



Tailor service ,just let us know your request ,we will give exact recommendation .

  • What kind of product that showed on our website do you need? PTFE fiber, PTFE Sewing thread, PTFE membrane or dust filter cloth and dust filter bag?

  • If you want buy filter cloth or felt and filter bag, tell me if you need membrane lamination.

  • The size of dust filter and collect bag.

  • Is it a revise air or pluse jet?

  • Flat Dimension.

  • Specs on Material.

  • Is it a Top or Bottom Load Collector?

  • Your  working conditions  such as temperature resistance, chemical resistance.
