Industrial Grade Fabric Needle Felt Dust Collector Bag Filter With PTFE Membrance

China Industrial Grade Fabric Needle Felt Dust Collector Bag Filter With PTFE Membrance supplier

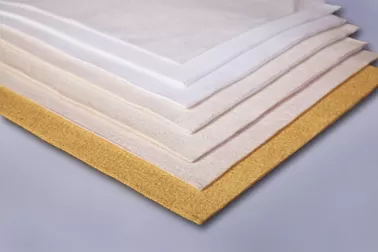

Large Image :  Industrial Grade Fabric Needle Felt Dust Collector Bag Filter With PTFE Membrance

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: 160X6000

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Weight: 500gsm Diameter: 120-180mm
Length: 2000-8000mm Warranty: 12 Months

Industrial Grade Fabric Needle Felt Dust Collector Bag Filter With PTFE Membrance



Description of Dust Collector Bag Filter :

Filter medium Bag filter ,fabrics filter for different industry pollution control,Bag filter  are carefully fabricated and sized to ensure ease of installation and change-out. Generally, dust collector Bag filter are designed to be mounted and gasket  firmly into place with a snap band, corded cuff, or clamp to ensure dust type seal.



Various coatings and finishing on the fabrics of the  Bag filter can be applied to either side of the  to enhance cleaning and efficiencies of dust collector system , as well as prolonging service life. Ground wire, anti-collapse rings, and other options can easily be incorporated into bag construction.  can custom fabricate various types of attachments to work with your specific requirements.



Bag filter, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,Polyimide filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags, dust filter bag ,bag filters, dust collector bags.





Applications of Dust Collector Bag Filter :

1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.



Specifications of Dust Collector Bag Filter :

Media

Weight(g/m2)

Material
Weaving/Scrim

Thickness
(mm)

Temperature
continuous/Max

Surface treatment

Polyester filter felt

600g/m2

PE/PE

1.9

135 /150

singed on one side

Ployster,oil and water ,
dirt repellent finish filter

550g/m2

PE/PE

1.7

135 /150

singed on one side
oil  and  water  repellent  finish
cleanability  supporting  finish

Polyster+antistatic

550g/m2

PE/PE

1.7

135 /150

singed on one side , antistatic

PPS high-temperature resistant

550g/m2

PPS/PPS

1.7

190 /200

singed on one side

PTFE high-temperature
resistant corrosion prevention

700g/m2

PTFE/PTFE

1.2

260 /280

singed on one side , corrosion prevention

Polyster+PTFE membrance

550g/m2

PE/PE

1.7

135 /150

singed on one side,PTFE membrance

P84 high-temperature resistant

550g/m2

P84/P84

2.8

240 /260

singed on one side  corrosion prevention

 FMS high-temperature resistant

550g/m2

FMS/FMS

2.2

200 /200

singed on one side



Competitive Advantage of Dust Collector Bag Filter :

Bag filter Quality raw materials
High-end production facilities
Good sewing job
Strict QC
Experienced technical & production

Good Quality Industrial Polyester Dust Collector Filter Bag,Polyester filter bag

1 - Good quality polyester filter material made with advanced machinery

2 - Accordingly adjusted technical process

3 - Strict raw material control and products quality control

4 - Competitive price




Tailor service ,just let us know your request ,we will give exact recommendation .

  • What kind of product that showed on our website do you need? PTFE fiber, PTFE Sewing thread, PTFE membrane or dust filter cloth and dust filter bag?
  • If you want buy filter cloth or felt and filter bag, tell me if you need membrane lamination.
  • The size of dust filter and collect bag.
  • Flat Dimension.
  • Specs on Material.
  • Is it a Top or Bottom Load Collector?
  • Industrial Grade Fabric Needle Felt Dust Collector Bag Filter With PTFE Membrance
  •
