Fiberglass Dust Collector Filter Bags Stainless steel Rings PTFE membrane

China Fiberglass  Dust Collector Filter Bags Stainless steel Rings PTFE membrane supplier

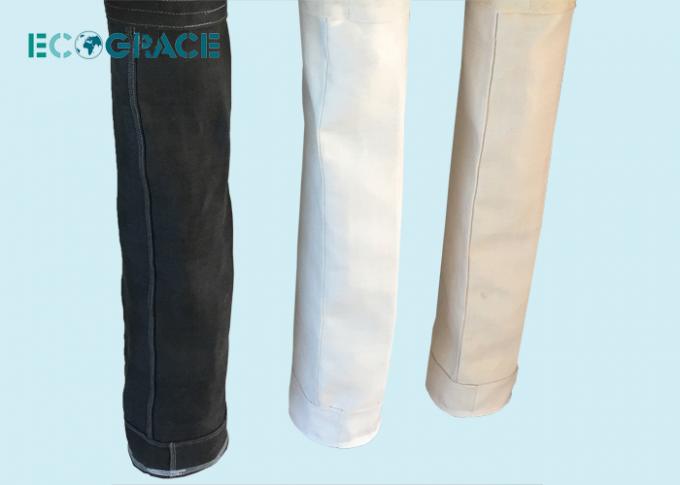

Large Image :  Fiberglass Dust Collector Filter Bags Stainless steel Rings PTFE membrane

Product Details:

Place of Origin: China, Shanghai
Brand Name: ECOGRACE
Certification: SGS, ISO9001
Model Number: Fiberglass 750

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags, 50 pcs/ bag
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pieces/ month
Contact Now
Detailed Product Description
Application: Ferro Silicon Furnace Dust Filter System Working Temperature: 260 Degree C
Thickness: 1.0 Mm Performance Of Abrasion Resistance: Excellent
Acids Resistance: Good Chemical Fanish: EPTFE Membrane
Other Application: Carbon Black Factory , Cement Kiln Filter System

Fiberglass Dust Collector Filter Bags Stainless steel Rings PTFE membrane



ECOGRACE Fiberglass Filter bag is mainly applied in high temperature fumes dust collection system ,

industry like cement plant , ferro silicon furnace , metal melting furnace , metal alloy plant , carbon black plant .



Detailed Product Description


Filter Cloth

Fiberglass

Weight:

775g/m2

Typical Load @ Peak:

MD: 220, XD: 120

Liner Shrinkage @ 230 Degree:

MD: 1%, XD: 1%

Maximum Operation Temperature:

260 Degree

Maximum Surge Temperature:

280 Degree

Abrasion Resistance:

Excellent







Introduction of Fiberglass Filter Bag

1, Material: Fiberglass

2, Thickness: 1.0 mm

3, Maximum Operation Temperature: 260 degree

4, Maximum Surge Temperature: 280 degree

5, Chemical Fanish: ePTFE membrane

6, Weight: 775g/m2



Application:



Fiberglass filter bag is the besst filter material for dust filtration of furnace, because its maximum operation temperature can reach to 260 degree and maximum surge temperature 280 degree, which means filter bags made from fiberglass can stal well worked under the temperature of 260 degree. What's more, it also has an excellent performance of abrasion resistance. So it is suitbale for furnace.



Performance:



1, Extremely excellent performance of high temperature.

2, Poor resistance to oxidize.

3, Excellent performance of abrasion resistance.

4, Fair resistance to acids.





Technical Information about Fiberglass Filter Bag



Type

Fiberglass  Filter bag

Abrasion resistance

Excellent

Max Operation Temperature

260 degree

Max Surge Temperature

280 degree

Heat resistance

Extremely excellent

Chemical FInish

ePTFE Dispersion

Thickness

2.2mm

Packaging

In woven bags

Application

Dust filtration of furnace

Delivery Time

15-30 days

Payment Terms

 TT or L/C





Technical Information about Other Filter Bags




 Dust collector filter bag


Continuous temperature


Peak Temperature


Description


Resistance to Acids


Resistance to Alkalis


Resistance to Oxidation


PH Value


PP filter bag


90ºC


95ºC


PP


Excellent


excellent


restricted


1~14


Acrylic filter bag


125ºC


140ºC


DT


good


good


good


3~11


Polyester

dust filter bag


150ºC


150ºC


PE


restricted


moderate


good


4~12


PPS filter bag


190ºC


200ºC


PPS


Excellent


excellent


moderate


1~14


Polyimide filter bag


240ºC


260ºC


P84


good


moderate


good


3~13


PTFE 100% filterbag


250ºC


280ºC


PTFE


Excellent


excellent


excellent


1~14

Fiberglass Filter bag

260ºC

300ºC

BQ

good

good

good


3~11






TheApplication:

1, Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2, Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3, Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4,  Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine

material

recovery, liquid and solid separation.





Brief Introduction of our Manufactory



We are a manufactory built in ten years ago and we have been specilized in the filter bag during the whole ten years. Every product we sell has been inspected by our QC, therefore our prodduct is highly qualified. And we enjoy a good repupation in and out of our country. With the development of ecology, the environment will get worse and worse. What we do is not to earn money but to protect the environment by our products. We do hope to improve the technology and make the world more beautiful.



Our Advantages:



1, Professional and patient reply for the consultations.

2, High qualified products.

3, Competitive price against other suppliers.

4, Professional instruction during the installation.

5, Continuous and stable after-sale service.

6, Oversea service available.



Pictures of Production Site:



Fiberglass  Dust Collector Filter Bags Stainless steel Rings PTFE membrane
