Iron Steel Plant Fiberglass Filter Bags 150-260 degree Melting furnace Bag Filter

China Iron Steel Plant  Fiberglass Filter Bags 150-260 degree  Melting furnace Bag Filter supplier

Large Image :  Iron Steel Plant Fiberglass Filter Bags 150-260 degree Melting furnace Bag Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001,SGS
Model Number: D130X4500

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Application: Carbon Black Working Temperature: Up To 260 Degree
Diameter: 130mm Length: 4500mm
Certification: SGS, ISO9001:2008 Warranty: 12months

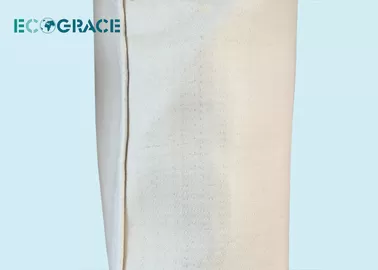

Iron Steel Plant Fiberglass Filter Bags 150-260 degree Melting furnace Bag Filter



ECOGRACE fiberglas filter bags are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing .



Detailed Product Description



Fiber:

Fiberglass

Weight:

750g/m2

Thickness:

0.8±0.1mm

Typical Load@ Peak:

MD: 220, XD: 130

Liner Shrinkage @ 230 Degree:

MD: 1%, XD: 1%

Maximum Operation Tempertion:

260 Degree

Maximum Surge Temperature:

280 Degree







 Introduction of Fiberglass Filter Bags:

Fiberglass filter bag is one of the best filter bags, which has a good performance of abrasion resistance for its strong strength , and good high tempreature resistant function . Fiberglass filter bag has a long service life up to 24 months. What's more, its heat resistance performance is also the best compared to other materials.



Characteristics of Fiberglass Filter Bag:

1, Filter Media :  Fiberglass Filter Media

2, Thickness: 0.5mm

3, Max Operation Temperature: 260 degree

4, Max Surge Temperature: 280 degree

5, Heat resistance: Excellent

6, Application: Furnace Flue gas filtration



Performance:

1, Excellent performance of high temperature resistance.

2, Well strong alkalis reistance.

3, Poor hydrolysis resistance.

4, Long serivce life.



Technical Information of Fiberglass filter bag



Article Name

Fiberglass filter bag

Ingredients

Fiber

Fiberglass

Scrim

fiberglass

Weight

g/m2

500

Thickness

mm

0.5±0.1

Density

g/m³

0.25

Permeability

L/dm2.min

200

Tensile breaking

strength(N/5cm)

Warp

≥2200

Weft

≥2600

Elongation @210N/5cm

Warp

<8

Weft

<10

Maximum shrink

of 90 mins

Temperature(°C)

280

%

≤2

Service Temperature(°C)

Continuous

260

Instant

280

Finishing



Graphite , silicon treatment
