Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter

China Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter supplier
Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter supplier Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter supplier

Large Image :  Double Twill Weaving 750 Gsm Dust Collection Filter Bags Cement Plant Kiln Bag Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO9001 : 2008 , SGS
Model Number: D160mm X L7000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: In woven bags
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Filter Bag Media: Fiberglass Filter Bag Type: Pulse Jet Filter Bag , Reverse Air Filter Bag
Working Temperature: 150 -260 Degree C Size: 160 X 6000 , 152 X 5000 , 292 X 11000 ,etc.
Application: Fumes Filter In Cement Plant , Metal Smelting Furnace , Other Application: Carbon Black , Non-ferros Metal Alloy , Paper Plant ,

Double Twill Weaving 750 gsm Fiberglass Filter Bags Cement Plant Kiln Bag Filter

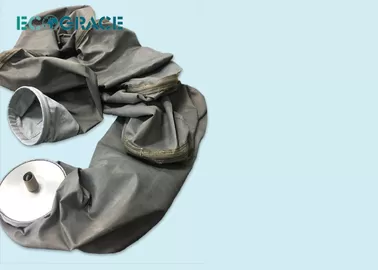

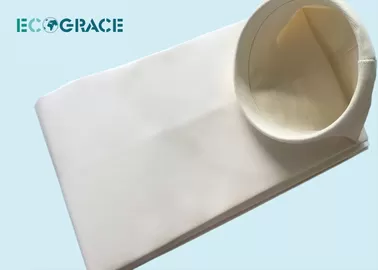

ECOGRACE Fiberglass Fabric Filter Bag :

ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing , Silicon furnace , Ferrous Silicon Manganese smelting furnace , Coal Boilers , steel mill .


E-glass woven fiberglass filter cloth fabrics are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .



Features of Fiberglass Filter Bag :

1. High temperature resistant , it can work for a long time under 260°C.

2. Smooth surface is good for easy dust cake releasing , energy saving .

3. Steady size,non shrinking under proper temperature.

4. Intensity high, obstruction more than 99% code thickness.



Industrials Applications:

• Cement Plant

• Coal Boiler

• Wast incinerators

• Carbon black production

• Refineries

• Steel Mills

Foundary / metal smelting furnace

Metal Smelting

Non ferros alloy plant

Paper plant ,

Glass production plant .



E-Glass Fiber Finished filter cloth specification:

Item No. LOI (%) Weave Weight (g/m2) Mullen burst (kpa) Tensile strength (N/2.5cm) Air permeability(cm3/cm2/s·127pa) Finished Running temperature (°C)
          warp weft
EFA301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PTFE <260
EFI301 > 10 double twill 780-850 > 6200 > 2400 > 2000 15-30 PI <260
EFB302 > 2 1/3 twill 450-500 > 4500 > 2000 > 1200 20-36 GSP <260
EFC302 > 5 1/3 twill 340-380 > 4500 > 2000 > 1200 20-36 AR <260
EFA303 >10 1/3 twill 320-360 > 3500 > 1400 > 800 22-35 PTFE <260
