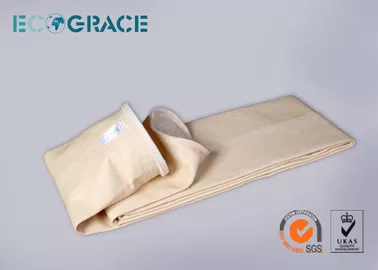

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm

The engineering capability for dust collector system is very strong ,I am very satisfied with the quality and service of Hangzhou Grace.

—— David Owens

I have ordered the Nomex filter bag from Hangzhou Grace for 5 years ,I am always enjoy the good quality filter bag supplied by them.

—— Barbara Haselton

ECOGRACE provide with our company for effective solutions about filter media for the dust emission control for our coal fird boiler baghouse system !

—— Steve Brain

I'm Online Chat Now

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm

China Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm supplier
Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm supplier Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm supplier

Large Image :  Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS ISO 9001 : 2008
Model Number: 150mm X 3000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 25 days
Payment Terms: T/T ,L/C, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Filter Bag Name: Nomex Filter Bag Meta Aramid Filter Bag Filter Media: Nomex Filter Felt
Size Of Filter Bag: Diameter 150mmX Length3000 Mm Application: Asphalt Mixing
Good Point: Cheaper In High Temperature Standby Filter Other Application: Metal Melting Furnace Fume Filtration ,
Other Size: D 160 X L 3000 Mm , D 152 X L 4500mm , Make To Order



Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm



Nomex filter bag is the most popular dust collector filter bag for the Ashphalt batching  plant and steel plant sintering process . It will working in fumes temperature asphalt batching fumes 190 degree to 200 degree C , instant 240 degreen C . It is one of the most cost effective  high temperature resistant dust collector filter bag , which is cheaper and effective , with long working life up to 24 months .



Quick details:


1.  Meta Aramid filter media is a high temperature resistant filter media.

The instant working temperature is 240 C degree, the operation working temperature <190 C degree.

2.  Application: Asphalt mixing, Quarrying, Lime, Gypsum, Cement, Foundries, smelting, Chemical.

3.  Good and strong tensile strength and good abrasion resistant function make it with the longer

working life.



Application :

Cement Industry Dust Filtration system ,

Asphalt mixing gas filtration

Metal smelting industry filter system

Gypsum Industry,

High temperature industrial gas / dust filtration.



Specifications :



Article Name

Nomex Filtration Felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

550

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring





MainType of Nomex Filter Bags :

Pulse Jet Dust Filter Bag

Envelope Type Filter Bag

Snap Band top filter bag

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm
