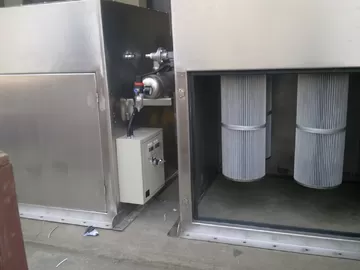

Coal Bunker Concrete Plant Silo Filter / dust collector machine <50 mg / M3

China Coal Bunker Concrete Plant Silo Filter / dust collector machine &lt;50 mg / M3 supplier
Coal Bunker Concrete Plant Silo Filter / dust collector machine &lt;50 mg / M3 supplier Coal Bunker Concrete Plant Silo Filter / dust collector machine &lt;50 mg / M3 supplier

Large Image :  Coal Bunker Concrete Plant Silo Filter / dust collector machine <50 mg / M3

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS, ISO
Model Number: ER08/03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiated
Packaging Details: container
Delivery Time: 10 days
Payment Terms: T/T ,L/C, Western Union, MoneyGram
Supply Ability: 10 0000 pcs / MONTHS
Contact Now
Detailed Product Description
Dust Collector: Cement Silo Filter , Concrete Silo Filter , Coal Bunker Silo Filter Application: Vent Filter , Top Silo Filter
Working Temperature: < 110 Degree C Emission: <50 Mg/ M3
Filter Element: Filter Cartridge Filter Cartridge Size: D140 X L1000mm



Coal Bunker Concrete Plant Silo Filter / dust collector machine <50 mg / M3



Cement Silo Filter Coal Bunker Silo Filter Concrete Plant Silo Filter

Cyclone Filter Dust Collector Top Silo Filter Cartridges Bag Filter ER08/02

Industrial Dust Collector Cartridge Filter Units Cement Silo Filter ER01/08

Cement Silo Filter , Silo top filter dust collector  ,  silo top filter fo concrete  batching plant ,



Specific parameters:

The filter area:48square meters

Cartridge number: 14pcs

The exhaust air rate: 2400 m3 / h

Filtration efficiency: > 99.9%

Cleaning method: intermittent vibration cleaning

Power vibration motor: 500 watts (380 V / 50 Hz)

The structure of the form: cylindrical

Diameter: 800 mm

Total installation height: 1635 mm

Connection: clamp connection (with seal)

Shell material: carbon steel

Weight: 150kg







MODEL Weight(kg) Unit Cartridge No. Filter area(m2) L*W*H(mm) Airflow (m/h)
EFF3-12 1720 1 12 276 1021×2275×4513 8400
EFF3-24 2600 2 24 552 2042×2275×4513 16800
EFF3-36 3640 3 36 826 3063×2275×4513 25200
EFF3-48 4840 4 48 1104 4084×2275×4513 33600
EFF3-60 6100 5 60 1380 5105×2275×4513 42000
EFF3-72 6860 6 72 1656 6126×2275×4513 50400
EFF4-16 2130 1 16 368 1021×2275×4996 11200
EFF4-32 3100 2 32 736 2042×2275×4996 22400
EFF4-48 4270 3 48 1104 3063×2275×4996 33600
EFF4-64 5580 4 64 1472 4084×2275×4996 44800
EFF4-80 7000 5 80 1840 5105×2275×4996 56000
EFF4-96 8360 6 96 2208 6126×2275×4996 67200







Construction:
1) Material: Carbon steel or stainless steel
2) Installed with pulse valves and control system
3) Block building structure, can be constructed to handle the required airflow

Application:
1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy

6) Silo Top filter , top silo filter in cement plant , concrete batching plant , coal bunkers.



Specifications:

Model Unit Cartridge No. Filter area(m2)
ECF3-12 1 12 276
ECF3-24 2 24 552
ECF3-36 3 36 826
ECF3-48 4 48 1104
ECF3-60 5 60 1380
ECF3-72 6 72 1656
ECF4-16 1 16 368
ECF4-32 2 32 736
ECF4-48 3 48 1104
ECF4-64 4 64 1472
ECF4-80 5 80 1840
ECF4-96 6 96 2208



Coal Bunker Concrete Plant Silo Filter / dust collector machine <50 mg / M3

Features:

(1) Suitable for most industrial process dust collections

(2) Special designed drop down inlet for heavy dust falling into hopper before reaching the filters.

(3) A variety of filter media technologies to provide filter efficiencies to 99.98%

(4) Suitable for operating at highest air-to-cloth ratio and providing longest filter life

(5) Cartridges secured and changed out from front access doors without need of tools

(6) Automatic compressed air pulse cleaning is standard

(7) Centrifugal fan is mounted on top of dust collector to save floor space

(8) Timer board or pulse on demand controls available to activate pulse valves

(9) Strongest housing construction for durable working life.

Typical Application:

Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical

Specifications:

Model Cartridges Filter Area 1 Filter Area 2 Filter Area 3 Filter Area 4
D2-4 4 84 m2 112 m2 37.6 m2 52 m2
D2-8 8 168 m2 224 m2 75.2 m2 104 m2
D2-12 12 252 m2 336 m2 112.8 m2 156 m2
D2-16 16 336 m2 448 m2 150.4 m2 208 m2
D2-20 20 420 m2 560 m2 188 m2 260 m2
D3-6 6 126 m2 168 m2 56.4 m2 78 m2
D3-12 12 252 m2 336 m2 112.8 m2 156 m2
D3-18 18 378 m2 504 m2 169.2 m2 234 m2
D3-24 24 504 m2 672 m2 225.6 m2 312 m2
D3-30 30 630 m2 840 m2 282 m2 390 m2



Product Dcescriptions:

The baghouse with pleated bags provide a significant update than traditional pulse jet needle felt baghouses. The baghouses with pleated bags dramatically increase filter area and efficiency than needle felt bags while operate at much lower differential pressure. The filter media are pleated and molded into a one-piece filter element, no need for support of cages. Compared with traditional needle felt bags, the pleated

Product Descriptions:

Horizontal cartridge dust collectors use gravity and downward airflow to achieve self-clean and reduce pressure across cartridge filters. They collector airborne contaminants from industrial processes varying from welding and metal working to chemical and pharmaceutical processing. They can be used in almost every manufacturing segment to efficiently control pollution levels. They are designed to work efficiently in small particle dusts and ideal for low dust loading applications.



Features:(1) Modular structure for easy system set up on site. The major components are already installed before delivery.

Compact structure design to save expensive plant floor space.

(2) Standard container shipping for cheapest freight cost.

(3) Various cartridge filter media available for widest dust collection applications.

(4) Special designed panels between each layer of cartridges prevent dusts from upper cartridges falling to lower cartridges

(5) Longest filter life and highest filter efficiency.

(6) Tool-free cartridge cover makes filter change-out a very easy and clean work.



Specifications:

Model Unit Cartridge No. Filter area(m2)
ECF3-12 1 12 276
ECF3-24 2 24 552
ECF3-36 3 36 826
ECF3-48 4 48 1104
ECF3-60 5 60 1380
ECF3-72 6 72 1656
ECF4-16 1 16 368
ECF4-32 2 32 736
ECF4-48 3 48 1104
ECF4-64 4 64 1472
ECF4-80 5 80 1840
ECF4-96 6 96 2208



Coal Bunker Concrete Plant Silo Filter / dust collector machine <50 mg / M3



Product Descriptions:

Vertical cartridge collectors are designed for low airflow and heavy dust load applications. The filter cartridges are fastened on tube sheet by a special locking mechanism. The venturi on the top of tube sheet can improve pulse jet clean effects and reduce system pressure. The vertical mounted cartridges avoid possibility of dusts falling from upper filters to down filters, which allows for higher A/C ratio and longer filter life.

Features:

(1) Suitable for most industrial process dust collections

(2) Special designed drop down inlet for heavy dust falling into hopper before reaching the filters.

(3) A variety of filter media technologies to provide filter efficiencies to 99.98%

(4) Suitable for operating at highest air-to-cloth ratio and providing longest filter life

(5) Cartridges secured and changed out from front access doors without need of tools

(6) Automatic compressed air pulse cleaning is standard

(7) Centrifugal fan is mounted on top of dust collector to save floor space

(8) Timer board or pulse on demand controls available to activate pulse valves

(9) Strongest housing construction for durable working life.

Typical Application:

Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical

Specifications:

Model Cartridges Filter Area 1 Filter Area 2 Filter Area 3 Filter Area 4
D2-4 4 84 m2 112 m2 37.6 m2 52 m2
D2-8 8 168 m2 224 m2 75.2 m2 104 m2
D2-12 12 252 m2 336 m2 112.8 m2 156 m2
D2-16 16 336 m2 448 m2 150.4 m2 208 m2
D2-20 20 420 m2 560 m2 188 m2 260 m2
D3-6 6 126 m2 168 m2 56.4 m2 78 m2
D3-12 12 252 m2 336 m2 112.8 m2 156 m2
D3-18 18 378 m2 504 m2 169.2 m2 234 m2
D3-24 24 504 m2 672 m2 225.6 m2 312 m2
D3-30 30 630 m2 840 m2 282 m2 390 m2



Product Dcescriptions:

The baghouse with pleated bags provide a significant update than traditional pulse jet needle felt baghouses. The baghouses with pleated bags dramatically increase filter area and efficiency than needle felt bags while operate at much lower differential pressure. The filter media are pleated and molded into a one-piece filter element, no need for support of cages. Compared with traditional needle felt bags, the pleated bags increase filter area by 100~300%, which allow for much smaller dust collector size.

Features:

(1) 100% spun bond polyester filter media. Durable and rigid construction

(2) Quickest erection of system. Most components Pre-installed in factory to minimize installation on site. No welding work is required on site.

(3) Wide pleat spacing, narrow pleat depth for best pulse jet clean

(4) Highest filter efficiency over 99.99%

(5) Very simple and easy bag installation and maintenance

(6) Pleated bags can be retrofitted on exiting felt bag collectors

(7) Pleated bag cap: PU, rubber and metal

(8) Special finishing of pleated bags available

Typical Application:

Wood, Paper, coal, cement, lime, fly ash, fiberglass, plastic and saw dust





Specifications:

Model Filter Size(mm) Filters Filter Area Valves
ECF10 146X1000 72 165.6M2 9
ECF13 146X1300 72 215.3M2 9
ECF20 146X2000 72 331.2M2 9





bags increase filter area by 100~300%, which allow for much smaller dust collector size.

Features:

(1) 100% spun bond polyester filter media. Durable and rigid construction

(2) Quickest erection of system. Most components Pre-installed in factory to minimize installation on site. No welding work is required on site.

(3) Wide pleat spacing, narrow pleat depth for best pulse jet clean

(4) Highest filter efficiency over 99.99%

(5) Very simple and easy bag installation and maintenance

(6) Pleated bags can be retrofitted on exiting felt bag collectors

(7) Pleated bag cap: PU, rubber and metal

(8) Special finishing of pleated bags available

Typical Application:

Wood, Paper, coal, cement, lime, fly ash, fiberglass, plastic and saw dust





Specifications:

Model Filter Size(mm) Filters Filter Area Valves
ECF10 146X1000 72 165.6M2 9
ECF13 146X1300 72 215.3M2 9
ECF20 146X2000 72 331.2M2 9
