D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm

China D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm supplier
D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm supplier D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm supplier D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm supplier

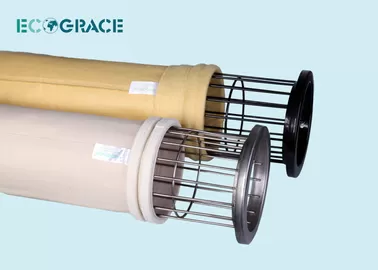

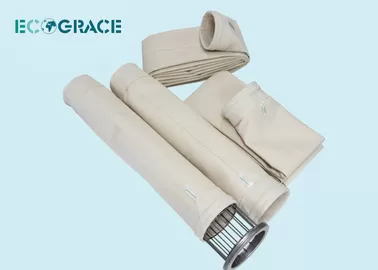

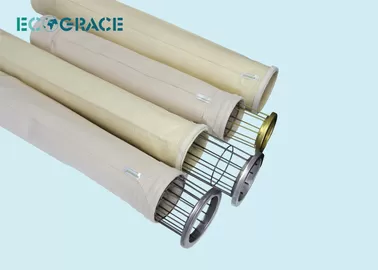

Large Image :  D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm

Product Details:

Place of Origin: China
Brand Name: ECOGRACE Filter Bag
Certification: SGS / ISO 9001
Model Number: 160x3000mm

Payment & Shipping Terms:

Minimum Order Quantity: 100ps
Price: negotiated
Packaging Details: Poly bag or Paper cartons
Delivery Time: 10 days
Payment Terms: T/T , L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Filter Cloth: Nomex Filter Cloth Type Of Filter Bag: Pulse Jet Filter Bag
Weight: 550 G / Sqm Support Filter Cage: Stainless Steel Filter Cage
Working Temperature: < 210 Degree C Application: Asphalt Mixing Site Dust Collector System



D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm



3 Meter Length High Temperature Nomex Filter Bag , Meta Aramid Bag Filter

Quick Details:

1. Material: Nomex filter material
2. Size: 150x 3600 mm
3. Woring temperature: 190 degree C - 204 degree C
4. Finishing: PTFE dipping , water and oil repellent treatment
5. Application: Asphalt mixing , steel mill blast furnace , cement plant



Description of Nomex Filter bags:



Nomex filter bags is the special filter media can be applied in Asphalt mixing plant ,it is the most cost effective filter bags for high temperture smoke. Nomex  filter bag  offerring one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .



Properties of Nomex Filter bags:



1) Performs at high temperatures

It is  used in  continuously  operating temperatures up to 218°C , and Nomex filter bags  can handle higher temperature surges.



2) Resists flexing and abrasion

Flex  and abrasion resistance function  of Nomex filter bag at ambient temperature is good.



3) Good retardant function of moisture

Nomex filter bag  performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20.



4) Dimensional Stability

Nomex filter bag ,Aramid filter bag  is one of the most dimensionally stable dust  filter bags  available. Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when operated at temperatures up to 218°C (425°F).



5) High temperatures resistant

The most effective use of Nomex filter bag , aramid filter bag is in high efficiency filtering systems  where effluent temperatures are above 250°F or in  systems with surges over 250°F. In hot gas filtration systems.



Will work very well in higher air to cloth ratio.



Applications:



Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .

It offers one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working  life.



Specifications:



Article Name

Nomex filter felt

Ingredients

Fiber

100% Nomex

Scrim

100% Nomex

Weight

g/m2

500

Thickness

mm

2.1

Density

g/m³

0.24

Permeability

L/dm2.min

150

Tensile breaking

strength(N/5cm)

Warp

≥800

Weft

≥1000

Elongation @200N/5cm

Warp

<5

Weft

<5

Maximum shrink

of 90 mins

Temperature(°C)

250

%

≤1

Service Temperature(°C)

Continuous

200

Instant

240

Finishing

Singeing, calendaring.Water and oil repellent treatment





Competitive Advantage:



Speciality



1. High Temperature resistant

2. Resists flexing and abrasion

3. Effect of moisture

4. Good chemical resistance

5. Dimensional Stability

6. Flame resistance

D150 X L3600mm Dust Collector Replacement Bags / Nomex Needle Felt Filter Bags 500 Gsm
